Product Overview

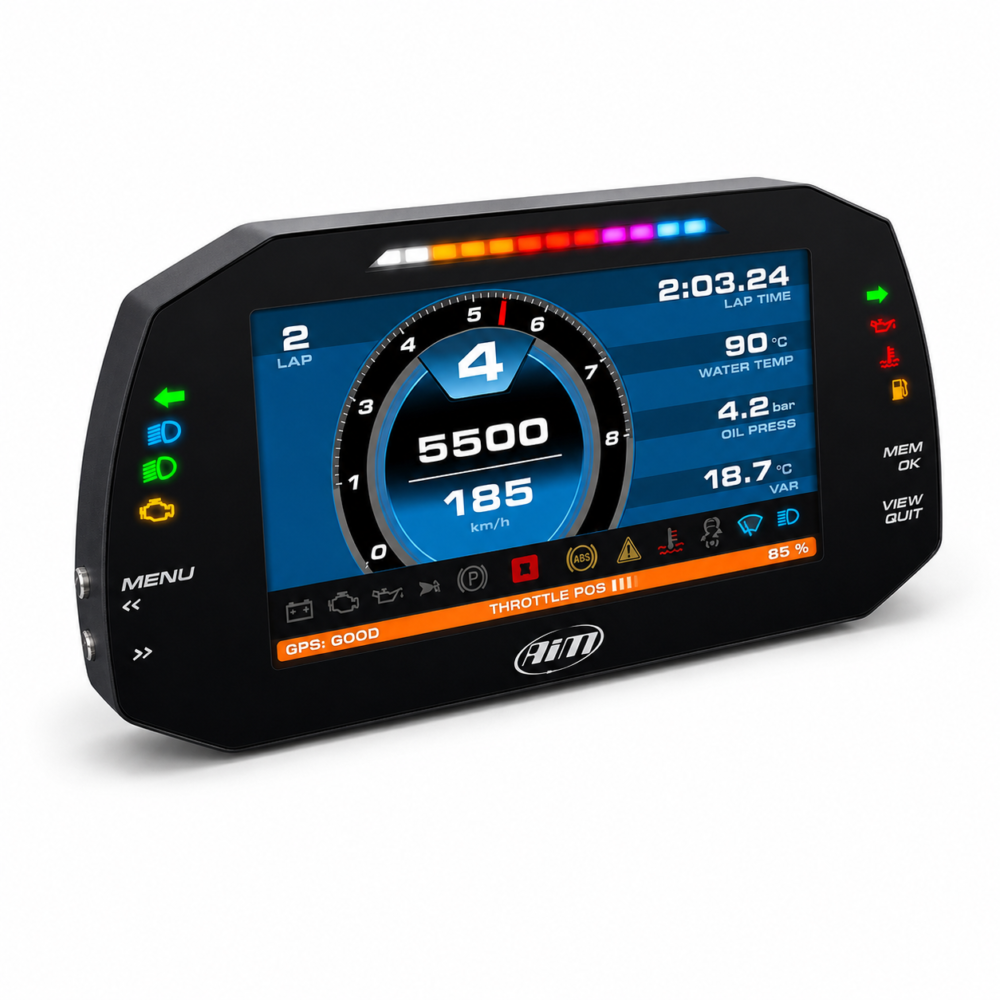

AIM MXG 1.3 Strada 7 Inch Digital Dash Display
The AIM MXG 1.3 Strada brings professional motorsport dashboard technology to race, track and performance vehicles in a powerful 7-inch TFT digital display package.
Developed by AIM for motorsport applications, the MXG 1.3 Strada provides drivers with clear, configurable real-time vehicle and engine information without the integrated data-logging functionality of the MXG 1.3 Dash Logger.
Its high-contrast 800 × 480 pixel TFT display delivers excellent visibility, while an integrated ambient light sensor automatically helps maintain screen readability as lighting conditions change.
The dashboard incorporates 10 configurable RGB shift LEDs across the top of the unit along with 8 configurable RGB alarm LEDs, allowing important warnings and shift points to be recognised immediately.
Advanced ECU Connectivity
One of the major advantages of the AIM MXG 1.3 Strada digital dash is its extensive ECU compatibility.
The dashboard can communicate with more than 2,000 leading aftermarket and OEM ECUs using:
- CAN
- RS232
- K-Line
This makes the MXG Strada suitable for a huge variety of motorsport and performance applications, including standalone ECU installations, competition cars, engine conversions and custom vehicle builds.
The system features three CAN connections, providing excellent flexibility when integrating additional vehicle electronics and compatible AIM expansion modules.
Fully Configurable Motorsport Display
Using AIM’s RaceStudio software, the MXG 1.3 Strada can be configured to display the vehicle information most important to the driver.
Depending on the connected ECU and sensors, this may include parameters such as:
- Engine RPM
- Vehicle speed
- Coolant temperature
- Oil temperature
- Oil pressure
- Fuel pressure
- Intake air temperature
- Throttle position
- Boost pressure
- Lambda / AFR
- Battery voltage
- Gear position
- Lap-related information
- Warning conditions
- Custom sensor channels
Multiple display pages can be configured to suit different driving or motorsport requirements.
Configurable RGB Shift Lights
The integrated 10 RGB LED shift-light array provides an immediate visual indication as engine RPM rises.
Shift points, colour sequences and operating behaviour can be configured to suit the engine and driver’s preferences.
This can help drivers make consistent gear changes while keeping their focus on the circuit.
Configurable Warning LEDs
The MXG 1.3 Strada additionally incorporates 8 configurable RGB alarm LEDs.
These can be configured to highlight critical parameters such as:
- Low oil pressure
- High coolant temperature
- High oil temperature
- Low fuel pressure
- Overboost
- Low battery voltage
- Engine warnings
- User-defined ECU or sensor conditions
Different colours can be assigned to individual warning conditions for fast recognition.
Additional Sensor Inputs
For vehicles where information cannot be obtained directly from the ECU, the MXG 1.3 Strada provides 8 fully configurable analogue/digital inputs, operating at up to 500 Hz per channel.
These allow additional sensors to be integrated into the dashboard system.
The Strada also provides a speed input and coil RPM input, giving installers additional flexibility for custom applications.
Motorsport-Grade Construction
The AIM MXG 1.3 Strada is built around an anodised aluminium enclosure with metallic pushbuttons and motorsport-focused electrical connections.
With an IP67 waterproof rating, it is designed to withstand the demanding environmental conditions commonly encountered in competition vehicles.
Its slim dimensions also make it suitable for custom dashboard installations where cockpit space is limited.
Key Features
- Genuine AIM MXG 1.3 Strada
- 7-inch colour TFT digital dashboard
- Non-logging Strada version
- 800 × 480 pixel display resolution
- 1,000:1 display contrast
- High-brightness TFT screen
- Automatic ambient light sensor
- 10 configurable RGB shift LEDs
- 8 configurable RGB warning/alarm LEDs
- 3 CAN connections
- CAN ECU communication
- RS232 ECU communication
- K-Line ECU communication
- Compatible with 2,000+ industry-leading ECUs
- 8 configurable analogue/digital inputs
- Inputs operate at up to 500 Hz each
- Speed input
- Coil RPM input
- Configurable digital output
- Compatible with selected AIM expansion modules
- Anodised aluminium enclosure
- Metallic control buttons
- Compact motorsport design
- IP67 weather/water resistance
- RaceStudio configuration support
- Ideal for race, track, kit and performance cars
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AIM |
| Product | MXG 1.3 Strada |
| Product Type | Digital Motorsport Dash |
| Logging | No – Strada Display Version |
| Display | 7″ Colour TFT |
| Resolution | 800 × 480 pixels |
| Contrast | 1,000:1 |
| Brightness | 700 cd/m² / 1,100 lumen |
| Ambient Light Sensor | Yes |
| Shift Lights | 10 configurable RGB LEDs |
| Alarm LEDs | 8 configurable RGB LEDs |
| CAN Connections | 3 |
| ECU Communication | CAN, RS232, K-Line |
| ECU Compatibility | 2,000+ supported ECUs |
| Analogue/Digital Inputs | 8 configurable inputs |
| Maximum Input Frequency | Up to 500 Hz each |
| Speed Input | 1 |
| Coil RPM Input | Yes |
| Digital Output | 1 |
| Housing | Anodised aluminium |
| Pushbuttons | Metallic |
| Connectors | 2 AMP + 1 Binder |
| Dimensions | 237 × 127.6 × 26 mm |
| Weight | Approx. 950 g |
| Power Consumption | Approx. 400 mA |
| Protection Rating | IP67 |
| Configuration Software | AIM RaceStudio |
| SKU | AIM-MXG-S-I-CAN |
Suitable Applications
The AIM MXG 1.3 Strada is an excellent choice for:
- Motorsport cars
- Race cars
- Track cars
- Time attack cars
- Rally cars
- Hill climb cars
- Drift cars
- Kit cars
- Restomod projects
- Engine-swapped vehicles
- Custom race builds
- Standalone ECU installations
- Performance road cars
- Competition vehicles
Important: Compatibility depends on the ECU, ECU protocol and installation configuration rather than simply vehicle make/model. Check ECU compatibility and required wiring before ordering.
Why Choose the AIM MXG 1.3 Strada?
A conventional dashboard can become restrictive when building a serious race or performance vehicle. The AIM MXG 1.3 Strada digital dashboard allows critical engine and vehicle parameters to be concentrated into one highly configurable display.
Its combination of excellent ECU compatibility, additional sensor inputs, programmable warnings and highly visible shift lights makes it suitable for everything from club-level motorsport to professional race builds.
For customers who require a premium AIM digital dashboard but do not require onboard data logging, the MXG 1.3 Strada offers an excellent alternative to the more expensive MXG 1.3 Dash Logger.
MXG 1.3 Strada vs MXG 1.3 Dash Logger
The distinction between these two models is important.
AIM MXG 1.3 Strada
- Digital dashboard/display
- Designed primarily for displaying vehicle and ECU information
- Non-logging version
- Lower-cost option where onboard data acquisition is unnecessary
AIM MXG 1.3
- Digital dashboard plus data logger
- Includes onboard motorsport data-acquisition capabilities
- Designed for users requiring detailed logged vehicle and performance analysis
Choose the MXG 1.3 Strada when you need the premium AIM TFT dashboard experience without integrated data logging.
Installation Notes
Professional installation is recommended.
The exact installation requirements will depend on:
- Vehicle
- ECU
- ECU communication protocol
- Existing wiring
- Additional sensors
- AIM expansion accessories
- Dashboard mounting arrangement
ECU compatibility should always be checked before installation.
Frequently Asked Questions
Does the AIM MXG 1.3 Strada record data?
No. The MXG 1.3 Strada is primarily a digital display dashboard and is the non-logging version of the MXG platform. Customers requiring onboard data logging should consider the MXG 1.3 Dash Logger.
What size is the AIM MXG 1.3 Strada display?
It uses a 7-inch colour TFT display with an 800 × 480 pixel resolution.
Does the AIM MXG Strada work with aftermarket ECUs?
Yes. AIM states that the MXG 1.3 Strada can communicate with more than 2,000 industry-leading ECUs through CAN, RS232 or K-Line protocols.
Does it have shift lights?
Yes. The MXG 1.3 Strada features 10 configurable RGB shift LEDs.
Does it have warning lights?
Yes. There are 8 configurable RGB alarm LEDs, allowing important vehicle or engine warnings to be displayed prominently.
Can additional sensors be connected?
Yes. The unit provides 8 configurable analogue/digital inputs, allowing compatible external sensors to be integrated.
Is the AIM MXG 1.3 Strada waterproof?
The enclosure carries an IP67 protection rating, making it suitable for demanding motorsport environments.
Can it be fitted to any car?
The MXG Strada is designed as a universal motorsport dashboard, but ECU communication and installation requirements vary. Compatibility with the specific ECU and vehicle wiring should therefore be confirmed before purchase.
What software is used to configure the dashboard?
AIM’s RaceStudio software is used to configure compatible AIM devices and dashboard parameters.
