Product Overview

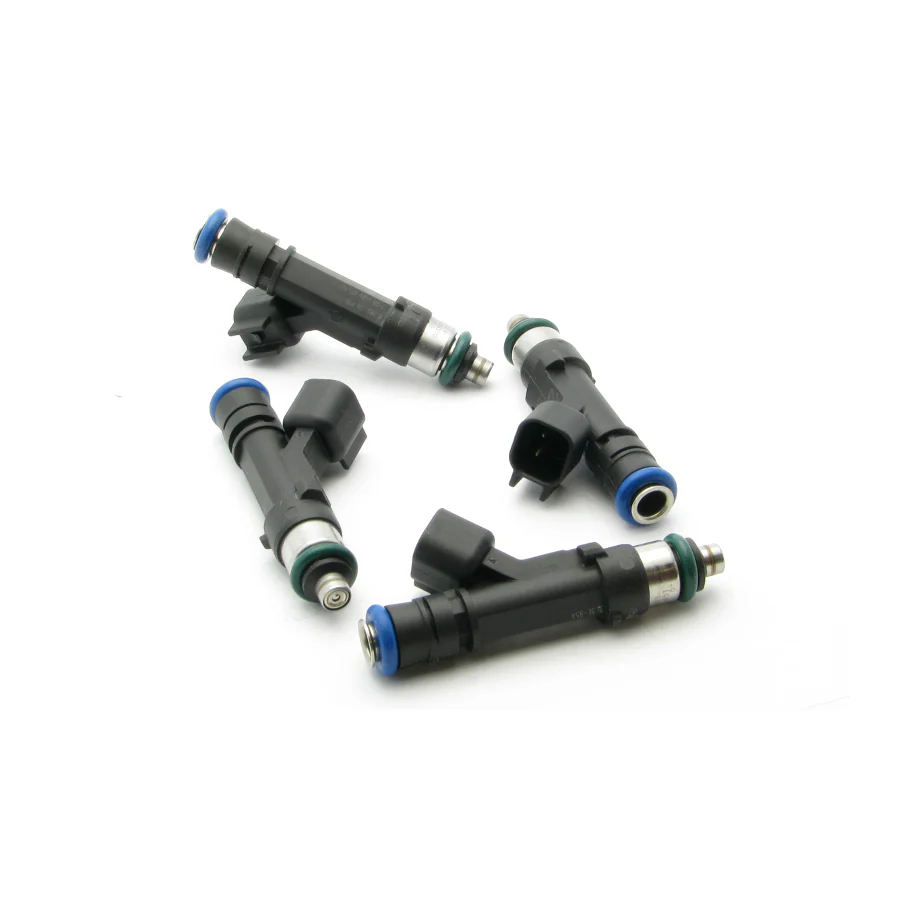

DeatschWerks DW 630cc Universal 60mm Fuel Injectors
The DeatschWerks DW 630cc Universal 60mm Fuel Injectors are engineered for performance-focused fuel systems where increased fuel flow, accurate fuel delivery and reliable injector characterisation are essential.
DeatschWerks part number 18U-00-0060-4 is a set of four Bosch EV14 universal 60mm-long fuel injectors, each rated at 630cc/min. The injectors use a USCAR electrical connector and are designed for applications where a 60mm injector length and USCAR connection are appropriate.
With a 630cc/min flow rate, these injectors provide substantially greater fuel delivery capacity than many standard OEM injectors, making them suitable for a wide range of turbocharged, supercharged and naturally aspirated performance builds where the original fuel injectors have reached their capacity.
Performance Fuel Delivery
Consistent fuel delivery is essential when tuning a modified engine. DeatschWerks develops its injectors with performance applications in mind, providing injector characterisation data to help tuners correctly configure the ECU.
The manufacturer provides injector tuning data for this product, allowing the appropriate injector characteristics to be incorporated into an engine management calibration.
This makes the DW 630cc injector set a suitable upgrade for performance engines where accurate fuelling is required alongside increased injector capacity.
Bosch EV14 60mm Injector Design
The 18U-00-0060-4 uses a Bosch EV14-style injector configuration with a 60mm length. The universal design makes these injectors suitable for a variety of aftermarket and performance fuel-system applications, provided the vehicle uses the correct injector length, connector and fuel-rail/manifold configuration.
Always confirm physical fitment and injector data with your vehicle, fuel rail and ECU before ordering.
Ethanol Compatible
DeatschWerks identifies the 630cc universal 60mm injector as ethanol compatible, making it suitable for compatible fuel-system applications using ethanol-containing fuels.
This makes the injectors particularly relevant to performance builds using fuels such as E85, provided the complete fuel system and engine calibration are designed for the chosen fuel.
Key Features
- DeatschWerks DW 630cc fuel injectors
- Part number: 18U-00-0060-4
- 630cc/min flow rate
- Universal 60mm-long injector
- Bosch EV14 configuration
- USCAR connector
- Set of 4 injectors
- Ethanol compatible
- Suitable for performance and modified engines
- Injector tuning data available
- Designed for precise fuel delivery
- Suitable for turbocharged and naturally aspirated performance applications
- Backed by DeatschWerks Limited Lifetime Warranty
- Available from PerformanceCarParts.co.uk
- UK-wide delivery
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DeatschWerks |
| Product | DW 630cc Universal 60mm Fuel Injectors |
| SKU / Part Number | 18U-00-0060-4 |
| Injector Type | Bosch EV14 |
| Flow Rate | 630cc/min |
| Approx. Flow Rating | 60 lb/hr class |
| Injector Length | 60mm |
| Connector | USCAR |
| Number of Injectors | 4 |
| Fuel Compatibility | Ethanol compatible |
| Application | Universal / Performance Fuel System |
| Tuning Data | Available |
| Warranty | Limited Lifetime Warranty |
| Manufacturer | DeatschWerks |
The manufacturer’s current product page confirms the USCAR connector, 630cc/min flow rate and four-injector quantity, as well as ethanol compatibility and the availability of tuning data.
Benefits of Upgrading to 630cc Injectors
Increased Fuel Flow
The 630cc/min rating provides significantly greater fuel delivery capacity than many factory injectors, helping support higher-power engine combinations when correctly matched to the engine’s fuel requirements.
Accurate Fuel Delivery
Injector characterisation and tuning data help an ECU tuner configure the injector correctly, which is important for achieving stable fuelling across different engine operating conditions.
Ideal for Performance Builds
The DW 630cc injectors are suited to modified engines where increased fuel demand comes from upgrades such as:
- Turbochargers
- Superchargers
- Higher-flow fuel pumps
- Increased boost
- Engine modifications
- Performance camshafts
- Upgraded intercoolers
- E85/ethanol fuel systems
- Standalone or aftermarket engine management
Ethanol-Compatible Fuel System Upgrade
For vehicles converted to compatible ethanol-based fuels, higher-flow injectors may be required because ethanol fuels can require greater fuel volume than petrol. The 18U-00-0060-4 is identified by DeatschWerks as ethanol compatible.
Fitment Information
The DeatschWerks 18U-00-0060-4 is a universal fuel injector set, rather than a vehicle-specific direct-fit application.
Before purchasing, verify:
- Injector length: 60mm
- Electrical connector: USCAR
- Fuel rail compatibility
- Intake manifold injector pocket dimensions
- Upper and lower O-ring requirements
- Fuel pressure
- ECU compatibility
- Injector dead-time / offset data
- Required fuel flow for your engine and power target
Physical dimensions and electrical compatibility must be confirmed before installation.
Because this is a universal injector, it should not be advertised as a direct-fit injector for a specific vehicle unless the application has been independently confirmed.
Injector Sizing & Tuning
Selecting the correct injector size depends on several factors, including:
- Engine power target
- Fuel type
- Fuel pressure
- Engine configuration
- Number of cylinders
- Desired duty cycle
- Brake-specific fuel consumption
- ECU calibration
A larger injector isn’t automatically better. The injector should be correctly sized for the engine and calibrated using the appropriate injector characterisation data.
DeatschWerks provides tuning data for this injector to assist with ECU calibration.
Professional installation and ECU calibration are recommended.
What’s Included?
This product is supplied as a set of four fuel injectors.
Product:
DeatschWerks DW 630cc Universal 60mm Fuel Injector Set
SKU:
18U-00-0060-4
Quantity:
4 Injectors
Warranty
DeatschWerks states that its products are backed by a Limited Lifetime Warranty and that its products undergo endurance testing under demanding operating conditions. Warranty coverage is subject to the manufacturer’s terms and conditions.
Why Choose DeatschWerks?
DeatschWerks specialises in performance fuel-system components including fuel injectors, fuel pumps, fuel rails, regulators and related components.
The DW 630cc universal injector set combines increased fuel-flow capacity with a compact Bosch EV14-style configuration, USCAR connectivity and available tuning data, making it a useful option for performance-engine builds.
Buy DeatschWerks 630cc Fuel Injectors UK
Order the DeatschWerks DW 630cc Universal 60mm Fuel Injectors – 18U-00-0060-4 from PerformanceCarParts.co.uk.
These high-flow performance injectors are suitable for a wide range of modified and motorsport-inspired fuel-system applications and are supplied as a matched set of four.
PerformanceCarParts.co.uk ships performance car parts across the UK, making it easy to order DeatschWerks fuel-system upgrades for your build.
Frequently Asked Questions
What size are the DeatschWerks 18U-00-0060-4 injectors?
The 18U-00-0060-4 is a 60mm-long universal fuel injector with a flow rate of 630cc/min.
How many injectors are included?
The 18U-00-0060-4 is supplied as a set of four injectors.
What connector do these DeatschWerks injectors use?
These injectors use a USCAR electrical connector.
Are the DeatschWerks 630cc injectors suitable for E85?
DeatschWerks identifies the 18U-00-0060-4 as ethanol compatible. The complete vehicle fuel system must also be suitable for the selected ethanol fuel.
Are these injectors universal?
Yes. The product is listed by DeatschWerks as a Universal 60mm-long injector. However, universal does not mean every vehicle is automatically compatible. Check injector length, connector, O-ring arrangement, fuel rail and manifold compatibility before ordering.
Are these injectors suitable for turbocharged engines?
Yes. Their increased 630cc/min flow capacity makes them suitable for many performance applications, including turbocharged engines, provided the injector size is correctly matched to the engine’s power, fuel type and fuel pressure.
Do these injectors come with tuning data?
Yes. DeatschWerks provides tuning data for the product.
What is the DeatschWerks SKU?
The manufacturer part number is 18U-00-0060-4.
