Product Overview

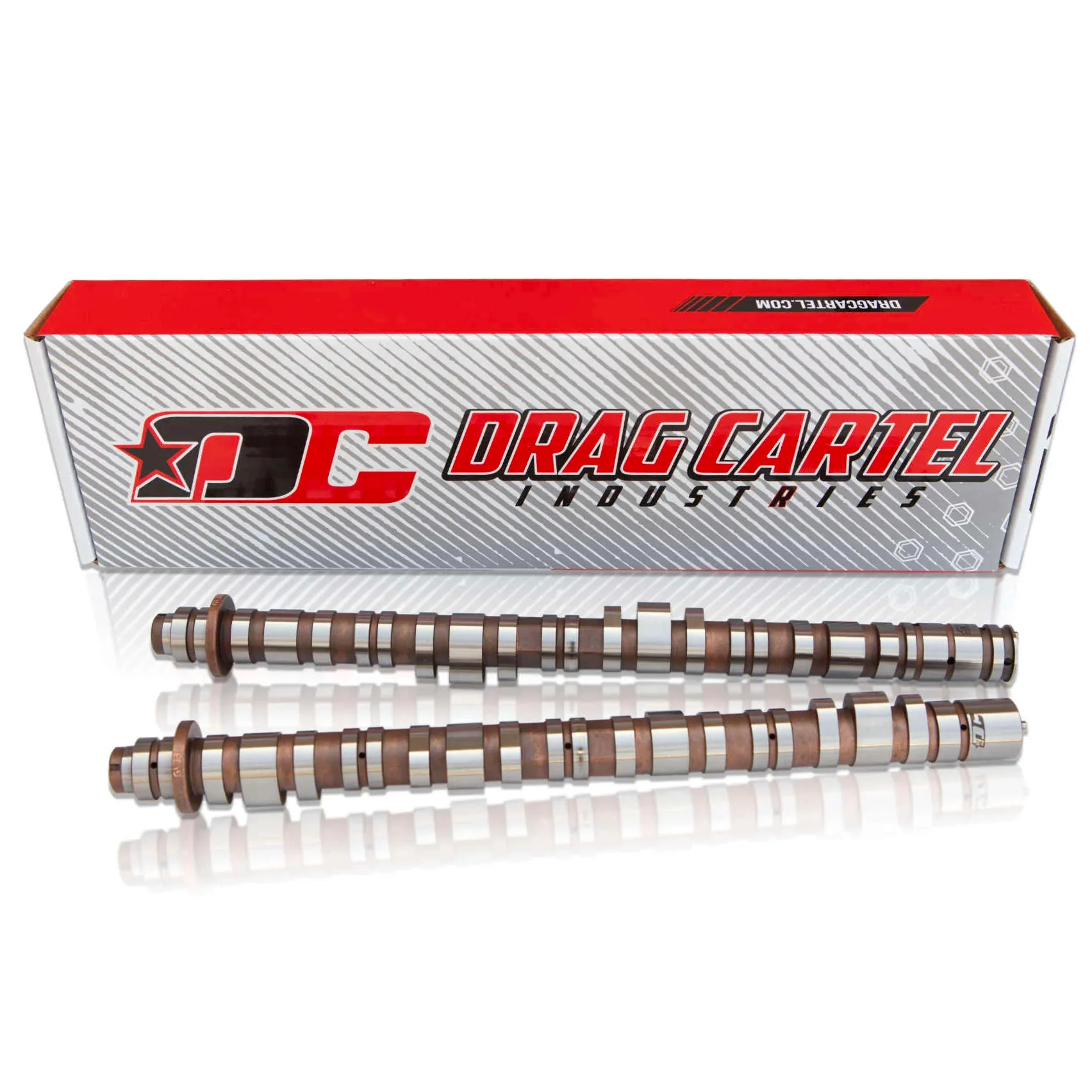

Drag Cartel Drop-In Cams (DIC) for Honda K-Series
Are you searching for the best camshaft upgrade for your K20 or K24 engine? The Drag Cartel Drop-In Cams (DIC) are the only cams on the market designed to deliver vast power gains without requiring an expensive valve train upgrade! Developed through years of high-end racing and rigorous dyno testing, these cams unlock the untapped potential of your K-series engine.
Why Choose Drag Cartel DIC Camshafts?
These cams are engineered specifically to maximize performance while maintaining OEM reliability, making them the ultimate “drop-in” solution for tuners and enthusiasts.
- No Valve Train Upgrade Needed: Achieve significant horsepower and torque gains without the need for high-performance valve springs or retainers.
- Superior Billet Material: Cams are made from aerospace-grade, 8620 steel billet material, ensuring the utmost rigidity and durability at extended RPM ranges.
- Reduced Valve Float: The rigid 8620 billet construction helps stabilize the valve train, effectively reducing the possibility of valve float at high RPMs.
- Precision Manufacturing: They are CNC ground on state-of-the-art cam grinders for perfect profile accuracy and superior performance.
SuperStreet article about Drop-In Camshafts «
Camshaft Specifications
The Drag Cartel DIC cams feature aggressive profiles to take full advantage of the K-series roller rocker valve train assembly.
- Material: All-new 8620 Billet Steel
- Intake Lobe Specs:
- Low Speed Lobe: 250° Duration / 9.6 mm Lift
- High Speed Lobe: 295° Duration / 12.7 mm Lift
- Exhaust Lobe Specs:
- Low Speed Lobe: 243° Duration / 8.4 mm Lift
- High Speed Lobe: 288° Duration / 12.00 mm Lift
Installation Torque Specifications
Ensure proper installation and performance by adhering to the following torque specifications:
- Intake Cam Gear Bolt: 83 lb-ft
- Exhaust Cam Gear Bolt: 51 lb-ft
- Pulse Plates: 29 lb-ft
Fitment and Engine Compatibility
The Drag Cartel Drop-In Cams fit a wide range of popular Honda and Acura K-Series engines.
Compatible Engines and Models:
Incompatibility Warning:
These cams are NOT compatible with the following engines:
- K24Z7 Block / Engines
- K24W1 Block / Engines
Ready to drop in the power? Upgrade your K-series today and experience the ultimate in street and track performance!
