Product Overview

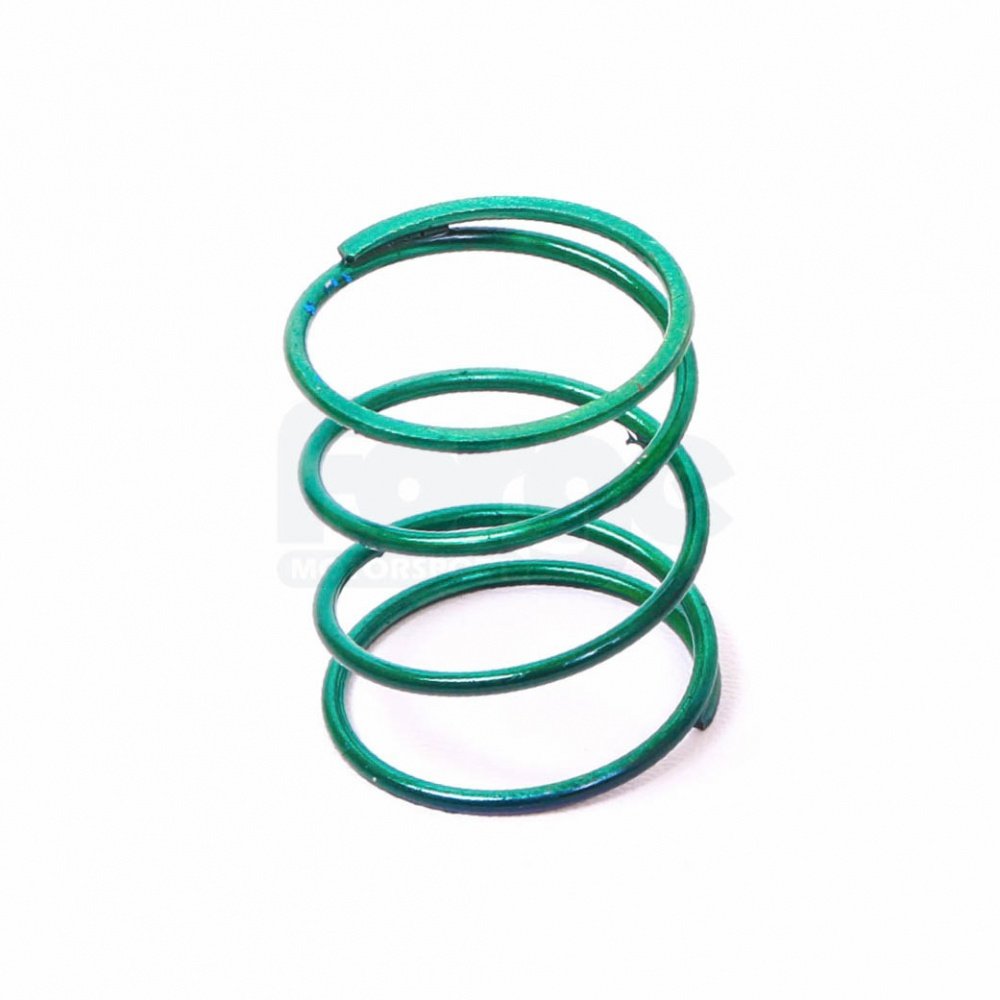

These are the individual springs sold in our FMDVTUN kit. Please select the colour you require using the options above.
Please check the measurements of your spring against those pictured before purchasing
If you are finding that the valve is dumping more than required, or if you are losing boost pressure it is normally an indication that a stronger spring is required. Alternatively, if the valve is failing to dump it may be necessary to install a weaker spring. Please note that fitting a stronger spring into a valve will not increase boost pressure, unless existing pressure is being lost. Failure to allow the valve to operate by installing a spring which is too strong, may cause damage to the turbocharger.
Please also note that the red coded springs should not be installed in the DVR or DV007 diaphragm valves.
Valve Spring color coding: Green – 5-15 PSI (0.35-1.03 Bar), Yellow – 15-23 PSI (1.03-1.59 Bar), Blue – 23-30 PSI (1.59-2.07 Bar), Red – 30 + PSI (2.07 Bar +)
*The above figures are estimates only and should only be considered as a guideline*
Note: Serious or fatal damage may occur to the engine and associated components if this product is incorrectly matched to the individual engine requirements. Forge Motorsport nor any of it’s authorised distributors can assume any responsibility for any adverse effects resulting from the installation of this product. Please contact us if you are uncertain whether this kit is suitable for your valve.
*Please Note – The colours of the springs illustrated may differ to what you receive. All spring kits are brand new but are not sprayed. Colour is used as an identifier*
