Product Overview

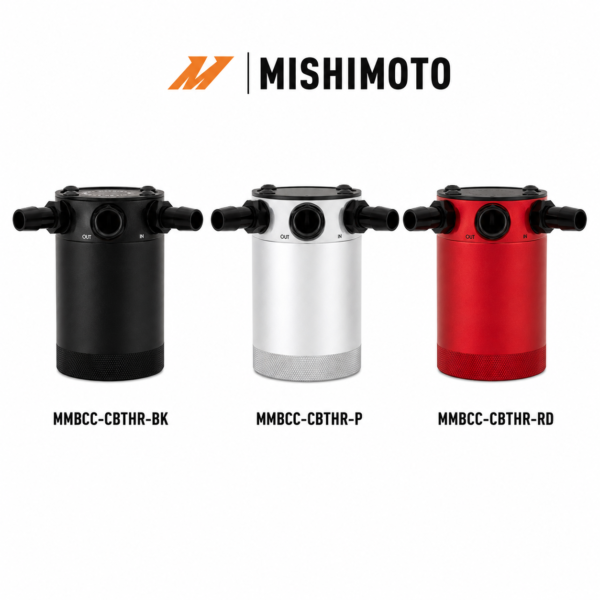

Mishimoto Compact 3-Port Baffled Oil Catch Can – Black / Polished / Red
Protect your engine’s intake system from unwanted oil vapour and blow-by with the Mishimoto Compact 3-Port Baffled Oil Catch Can.
Designed as a universal performance upgrade for PCV and CCV systems, this compact catch can separates oil particles and contaminants from crankcase gases before they can be recirculated into the intake system.
Available in Black, Polished and Red, the Mishimoto 3-Port Compact Catch Can is ideal for modified, turbocharged, supercharged and naturally aspirated vehicles where efficient crankcase ventilation and oil separation are required.
Available Options
| Finish | SKU |
|---|---|
| Black | MMBCC-CBTHR-BK |
| Polished | MMBCC-CBTHR-P |
| Red | MMBCC-CBTHR-RD |
Why Install an Oil Catch Can?
During normal engine operation, crankcase gases containing oil vapour and other contaminants can be routed back through the PCV or CCV system into the intake.
Over time, these contaminants can contribute to oil residue within the intake tract, intercooler and other components.
The Mishimoto Compact Baffled Oil Catch Can is engineered to help capture these contaminants before they return to the engine.
Its internal air diverter increases turbulence inside the catch can, encouraging oil particles to separate from the airflow. Air then passes through a 50-micron bronze filter before leaving the catch can.
Key Features
- Compact universal 3-port baffled oil catch can
- Two inlet ports and one outlet port
- Designed for PCV and CCV applications
- Helps separate oil particles from crankcase ventilation gases
- 50-micron bronze filtration element
- Internal air diverter increases airflow turbulence
- Internal baffle helps control collected oil during hard driving
- Manufactured from billet 6061 aluminium
- Suitable for pressurised applications
- Fully serviceable filter and catch can
- Washable filtration system
- Viton O-ring sealing
- Multiple mounting orientations
- Universal mounting bracket included
- Three aluminium 1/2-inch barbed fittings included
- Available in Black, Polished or Red
- Mishimoto Lifetime Warranty
Performance Engine Protection
Oil blow-by entering the intake system can coat intercooler pipes, intake manifolds and other components with oily residue.
By separating these contaminants from the PCV/CCV airflow, the Mishimoto catch can helps keep the intake system cleaner and reduces the amount of oil vapour being recirculated through the engine.
This makes it particularly useful for performance, tuned, turbocharged and supercharged vehicles, where increased cylinder pressures may result in greater crankcase ventilation requirements.
Advanced Internal Baffle Design
Unlike a simple empty catch tank, the Mishimoto Compact Catch Can uses an internal air diverter and baffling system.
The diverter creates additional turbulence within the catch can, encouraging suspended oil droplets to separate from the airflow and collect at the bottom of the can.
A 50-micron bronze filter provides an additional stage of separation before the cleaned airflow exits the catch can.
The internal baffle also helps prevent collected oil from splashing back into the airflow during aggressive cornering, acceleration or track use.
Billet 6061 Aluminium Construction
The catch can body is manufactured from 100% billet 6061 aluminium, offering excellent strength while maintaining a compact and lightweight design.
Viton O-rings help provide effective sealing so captured blow-by remains inside the catch can.
The compact design makes the unit especially useful where engine-bay space is limited.
Three-Port Configuration
This version features:
- 2 x inlet ports
- 1 x outlet port
The three-port configuration provides additional flexibility when designing PCV and CCV systems and can accommodate applications that require two crankcase ventilation feeds entering a single catch can.
Technical Specifications
Brand: Mishimoto
Product: Compact Baffled Oil Catch Can
Configuration: 3-Port
Inlets: 2
Outlets: 1
Construction: Billet 6061 Aluminium
Filter: 50-Micron Bronze
Port Thread: M16 x 1.5
Drain Plug Thread: 3/8 NPT
Hose Fittings: 1/2-inch Barbed
Application: Universal
System Compatibility: PCV / CCV
Serviceable: Yes
Pressurised Applications: Suitable
Warranty: Mishimoto Lifetime Warranty
What’s Included?
- 1 x Mishimoto Compact 3-Port Baffled Oil Catch Can
- 3 x Aluminium 1/2-inch Barbed Fittings
- 1 x Universal Mounting Bracket
- Mishimoto Lifetime Warranty
Available Colours / SKUs
Black – MMBCC-CBTHR-BK
A discreet black finish ideal for OEM-style and stealth engine-bay installations.
Polished – MMBCC-CBTHR-P
A polished aluminium finish designed for engine bays where appearance is as important as performance.
Red – MMBCC-CBTHR-RD
A distinctive red finish ideal for performance engine bays and colour-coordinated builds.
Vehicle Compatibility
This is a universal-fit oil catch can and is not designed for one specific make, model or engine.
Installation requires a suitable mounting position and connection to the vehicle’s PCV/CCV system. Hose routing, adapters or additional fittings may be required depending on the application.
Please check available engine-bay space, hose configuration and connection sizes before ordering.
Maintenance
Mishimoto recommends regularly inspecting the contents of the catch can after installation. Initially, checking approximately every 1,000 miles can help establish how quickly blow-by accumulates for your particular engine, driving conditions and climate.
The collected fluid should not be allowed to rise above the internal baffle.
