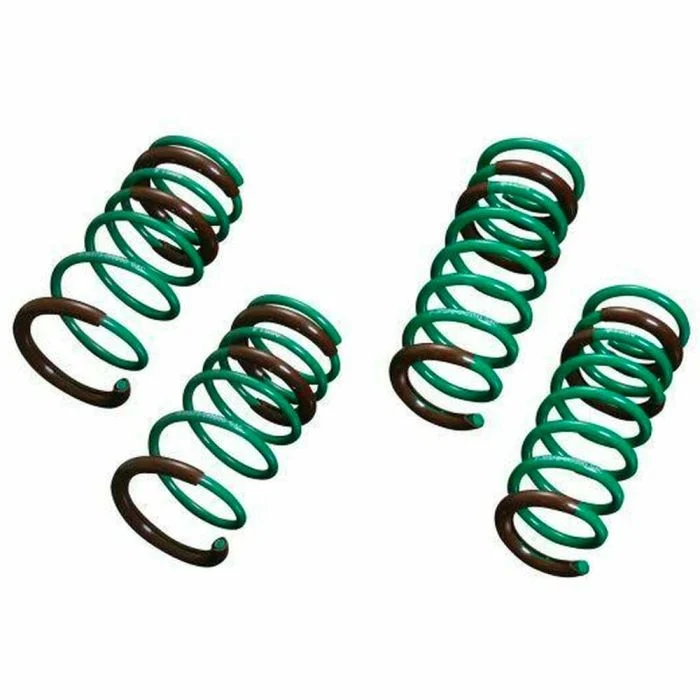

TEIN S.Tech Lowering Springs for Toyota GR Yaris GXPA16

Transform the appearance and handling of your Toyota GR Yaris with the TEIN S.Tech Lowering Spring Kit SKTN0-S3B00, available from Performance Cars Parts UK.

The GR Yaris is already one of Toyota Gazoo Racing’s most capable performance cars, but lowering the centre of gravity can further enhance its road presence and suspension response. The TEIN S.Tech GR Yaris lowering springs are engineered to provide a carefully calculated reduction in ride height while retaining a level of comfort suitable for road use.

Designed specifically for the Toyota GR Yaris GXPA16 1.6 turbo AWD, this kit provides approximately 25mm lowering at the front and 20mm at the rear.

Lower, More Aggressive GR Yaris Stance

The factory GR Yaris already has an aggressive wide-body design, but the standard suspension leaves room between the tyres and wheel arches.

Installing the TEIN S.Tech lowering springs reduces this wheel arch gap, producing a cleaner and more purposeful stance without the extreme ride-height reduction associated with some track-focused suspension systems.

Approximate ride-height reduction:

Front: -25mm
Rear: -20mm

Actual ride height can vary slightly according to vehicle specification, vehicle condition, installation and wheel/tyre setup.

Improved Handling and Reduced Body Movement

Lowering the vehicle’s centre of gravity can help reduce unwanted body movement during:

• Cornering
• Direction changes
• Hard braking
• Acceleration
• Fast road driving

TEIN states that the GR Yaris application is designed to suppress excessive body roll while retaining the original vehicle’s comfortable road characteristics.

The result is an excellent suspension upgrade for GR Yaris owners looking for a sportier setup without immediately moving to a complete coilover system.

GR Yaris-Specific Spring Rates

TEIN has developed dedicated front and rear spring rates for the GXPA16 platform.

Front Spring Rate: 3.2 kgf/mm
Rear Spring Rate: 4.1 kgf/mm

These rates have been selected specifically for the balance and suspension characteristics of the GR Yaris rather than using a universal lowering spring design.

Progressive Spring Design

TEIN S.Tech springs feature a progressive spring design intended to provide a balance between everyday road comfort and increased suspension control.

This makes them particularly attractive for customers searching for:

• Toyota GR Yaris lowering springs
• GR Yaris suspension upgrades
• GR Yaris handling upgrades
• GR Yaris fast road suspension
• GR Yaris lowering kits
• TEIN GR Yaris springs
• GXPA16 lowering springs

SAE9254V Chrome Vanadium Construction

TEIN S.Tech springs are manufactured using high-quality SAE9254V chrome vanadium steel, providing the strength and durability required for performance suspension applications.

The springs are finished in TEIN’s distinctive green coating, providing the instantly recognisable appearance associated with TEIN suspension components.

Designed to Work with Factory Dampers

One of the biggest advantages of the TEIN S.Tech GR Yaris lowering spring kit is that it is designed for installation with the vehicle’s original or equivalent replacement dampers.

This makes the S.Tech kit an excellent option for customers who want to lower their Toyota GR Yaris without replacing the complete suspension system with coilovers.

For best performance, dampers should always be inspected for condition before fitting new lowering springs.

Made in Japan

TEIN is one of Japan’s best-known performance suspension manufacturers, with products used on modified road cars, performance vehicles and motorsport applications around the world.

The S.Tech range provides an accessible way to upgrade the stance and suspension characteristics of the GR Yaris while retaining TEIN’s vehicle-specific engineering approach.

Vehicle Compatibility

Designed for:

Toyota GR Yaris
Chassis: GXPA16
Engine: 1.6 Turbo Petrol
Engine Code: G16E-GTS
Drivetrain: AWD / 4WD
Production application: September 2020 – March 2024
TEIN Part Number: SKTN0-S3B00

TEIN’s application data specifically lists the GXPA16 RZ High Performance configuration from 2020.09 to 2024.03. UK-market customers should confirm compatibility by chassis/VIN before ordering, particularly for vehicles produced during the 2024 model changeover.

GR Yaris Circuit Pack

The UK Circuit Pack is an equipment specification rather than a different GXPA16 chassis family. Nevertheless, suspension compatibility should always be confirmed against the exact vehicle and production date before purchase.

Please Note About 2024 Facelift Cars

This SKU should not automatically be assumed to fit the revised 2024-on GR Yaris.

TEIN’s published application for SKTN0-S3B00 ends at March 2024, so customers with the later facelift model should contact Performance Cars Parts UK with their registration or VIN for compatibility confirmation before ordering.

Technical Specifications

Manufacturer: TEIN
Product Range: S.Tech
Product Type: Performance Lowering Springs
Manufacturer Part Number: SKTN0-S3B00
Vehicle Manufacturer: Toyota
Vehicle Model: GR Yaris
Chassis Code: GXPA16
Engine Size: 1.6L
Engine Type: Turbocharged Petrol
Engine Code: G16E-GTS
Drivetrain: AWD / 4WD
Front Lowering: Approx. 25mm
Rear Lowering: Approx. 20mm
Front Spring Rate: 3.2 kgf/mm
Rear Spring Rate: 4.1 kgf/mm
Front Free Length: Approx. 260mm
Rear Free Length: Approx. 335mm
Material: SAE9254V Chrome Vanadium Steel
Colour: TEIN Green
Quantity: Set of 4 springs
Country of Manufacture: Japan
SKU: SKTN0-S3B00

Installation Information

Professional installation is strongly recommended.

TEIN’s application notes specify modification of the OE bump stops during installation:

Front: cut the bump rubber approximately 17mm from the bottom and use the upper section.

Rear: cut the bump rubber approximately 20mm from the bottom and use the upper section.

Following installation, we recommend having the vehicle’s wheel alignment checked and adjusted where necessary.

Why Upgrade Your GR Yaris with TEIN S.Tech Springs?

The Toyota GR Yaris GXPA16 was developed as a road-going performance car with strong motorsport influence. For owners wanting to enhance its stance without moving directly to an adjustable coilover setup, lowering springs provide a cost-effective suspension upgrade.

The TEIN S.Tech kit offers:

• Lower centre of gravity
• Reduced wheel arch gap
• More aggressive appearance
• Improved road stance
• Reduced body roll
• Improved suspension response
• Vehicle-specific spring rates
• Compatibility with OE-style dampers
• Proven TEIN suspension engineering
