Product Overview

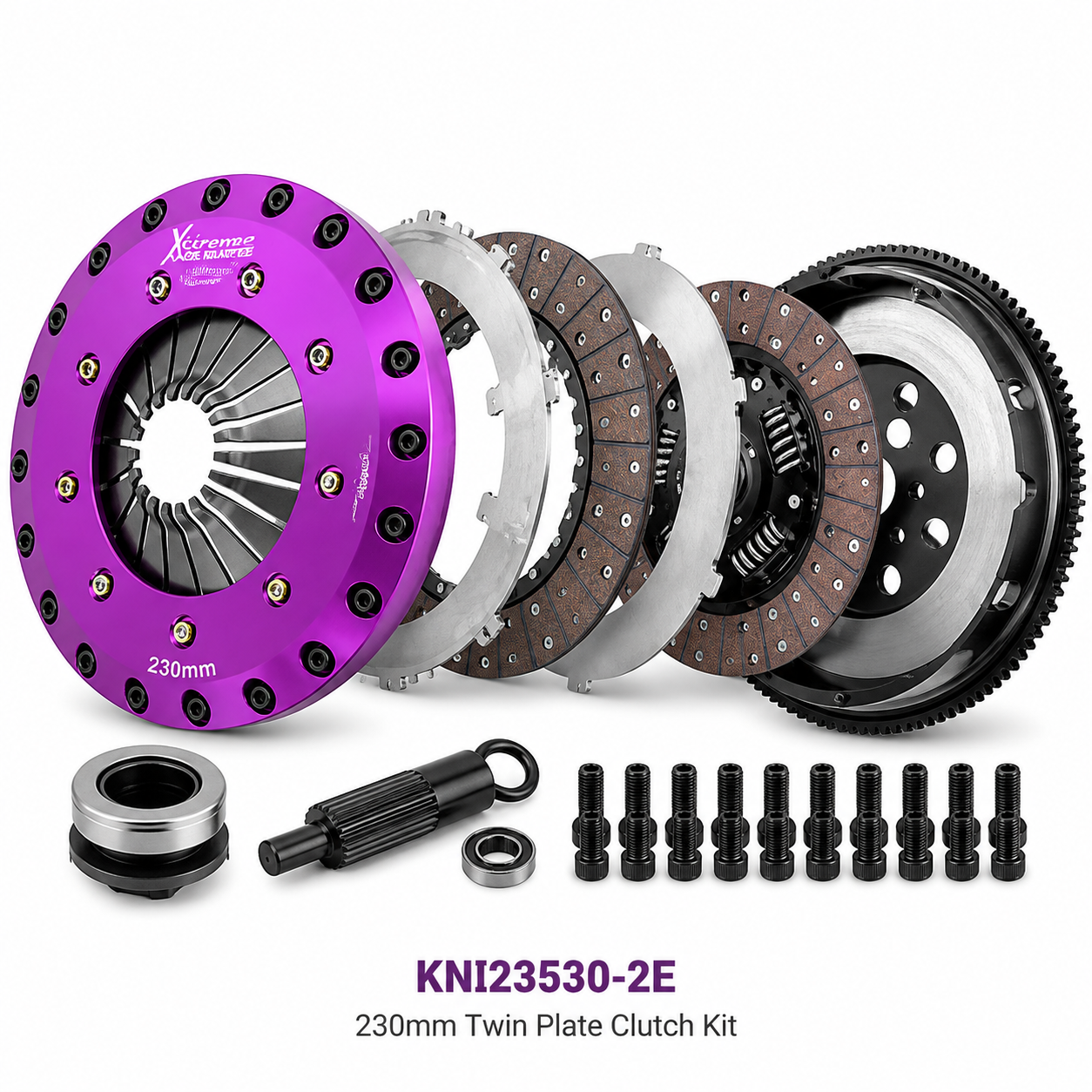

Xtreme Performance 230mm Twin Plate Motorsport Clutch
The Xtreme Performance KNI23530-2E has been engineered for Nissan RB-powered vehicles where a conventional single-plate clutch can no longer reliably manage the engine’s torque output.
Using a 230mm rigid ceramic twin-plate design, this clutch system has a manufacturer-listed torque capacity of 1800Nm and is designed primarily for serious motorsport applications. Xtreme classifies ceramic multi-plate kits ending in -2E as part of its Stage 5 Motorsport series, developed for dedicated motorsport use.
This makes KNI23530-2E particularly suitable for applications such as:
- Drift competition
- Drag racing
- Circuit racing
- Time attack
- High-boost RB20DET builds
- High-power RB25DET builds
- Modified RB26DETT applications
- RB30DE / RB30DET performance builds
Official Nissan Applications
According to Xtreme’s current 230mm clutch catalogue, KNI23530-2E is listed for the following Nissan applications:
- Nissan Skyline R31 – RB30DE/T
- Nissan Skyline R32 GTS / GTS-T – RB20DET
- Nissan Skyline BNR32 GT-R Early Model – RB26DETT, Push-Type
- Nissan Skyline R33 GTS-T – RB25DET
- Nissan Cefiro A31 – RB20DET
All of these applications are listed with an 1800Nm ceramic torque capacity.
Important R34 Correction
KNI23530-2E should not be listed for the Nissan Skyline R34 GT-T.
Xtreme’s catalogue specifies the R34 GT-T RB25DET pull-type application as KNI23582-2E, not KNI23530-2E. The same KNI23582-2E family is also used for later pull-type BNR32 and BCNR33 GT-R applications with a push-type conversion.
230mm Rigid Ceramic Twin Plate Construction
The twin-plate design provides two friction surfaces compared with a conventional single-plate clutch, helping achieve significantly greater torque capacity while maintaining a compact overall clutch diameter.
The rigid ceramic friction discs are focused on maximum performance rather than OE-style comfort.
Key Advantages
- 1800Nm torque capacity
- Twin-plate clutch configuration
- 230mm friction-disc diameter
- High heat capacity
- Excellent torque holding capability
- Positive and rapid engagement
- Suitable for extreme power builds
- Motorsport-focused construction
- Serviceable multi-plate design
- Reduced rotational inertia compared with many conventional heavy-duty systems
Xtreme notes that its Stage 5 multi-plate systems are designed specifically for dedicated motorsport applications and can be serviced with replacement discs and intermediate components where condition permits.
Chromoly Flywheel Included
The KNI23530-2E is supplied as a complete clutch kit including a chromoly flywheel and pressure-plate bolts. This is confirmed in Xtreme’s application catalogue.
Including the matched flywheel is especially important for high-performance multi-plate clutch systems because the clutch and flywheel assembly are engineered to work together.
Designed for Motorsport Use
This clutch should not be confused with a conventional upgraded road clutch.
Rigid ceramic friction discs engage more aggressively and can introduce:
- Increased drivetrain noise
- Clutch chatter
- Sharper engagement
- Greater driveline shock
- Reduced low-speed refinement
Xtreme categorises its -2E ceramic multi-disc kits as Stage 5, which are designed for dedicated motorsport use rather than normal daily-driving applications.
Key Features
- Brand: Xtreme Performance / Xtreme Clutch
- SKU: KNI23530-2E
- 230mm twin plate clutch
- Rigid ceramic friction material
- 1800Nm torque capacity
- High-performance motorsport design
- Chromoly flywheel included
- Pressure-plate bolts included
- High heat capacity
- Positive clutch engagement
- Serviceable multi-disc architecture
- Designed for heavily modified vehicles
- Suitable for selected Nissan RB-powered applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Xtreme Performance / Xtreme Clutch |
| Manufacturer Part Number | KNI23530-2E |
| Product Type | Motorsport Twin Plate Clutch Kit |
| Xtreme Stage | Stage 5 |
| Clutch Diameter | 230mm |
| Number of Plates | Twin Plate |
| Friction Material | Ceramic |
| Hub Type | Rigid / Solid |
| Torque Capacity | 1800Nm |
| Flywheel Included | Yes |
| Flywheel Material | Chromoly |
| Pressure Plate Bolts | Included |
| Primary Vehicle Brand | Nissan |
| Recommended Use | Dedicated Motorsport / Competition |
| SKU | KNI23530-2E |
Confirmed Vehicle Applications
Nissan Skyline R31 – RB30DE/T
Nissan Skyline R32 GTS / GTS-T – RB20DET
Nissan Skyline BNR32 GT-R Early Model – RB26DETT Push-Type
Nissan Skyline R33 GTS-T – RB25DET
Nissan Cefiro A31 – RB20DET
These applications are confirmed in Xtreme’s current 230mm clutch catalogue.
Important Fitment Notice
Please confirm the exact vehicle model, engine code, gearbox and clutch actuation type before ordering.
This is particularly important with Nissan Skyline models because push-type and pull-type clutch configurations can use different kits.
Xtreme states that warranty coverage applies to clutch kits installed on vehicle applications specifically listed in its current catalogue, and fitting a clutch to an incorrect or unlisted application may invalidate warranty coverage.
Why Choose Xtreme Performance?
Xtreme Performance specialises in performance clutch systems for street, track and professional motorsport vehicles.
Its performance range includes single-plate road upgrades through to dedicated multi-plate motorsport systems. The KNI23530-2E belongs to Xtreme’s high-end ceramic Stage 5 range, intended for applications requiring extreme torque capacity and thermal performance.
For heavily modified Nissan RB-powered builds, this makes the KNI23530-2E an excellent option where maximum clutch holding capacity is the priority.
