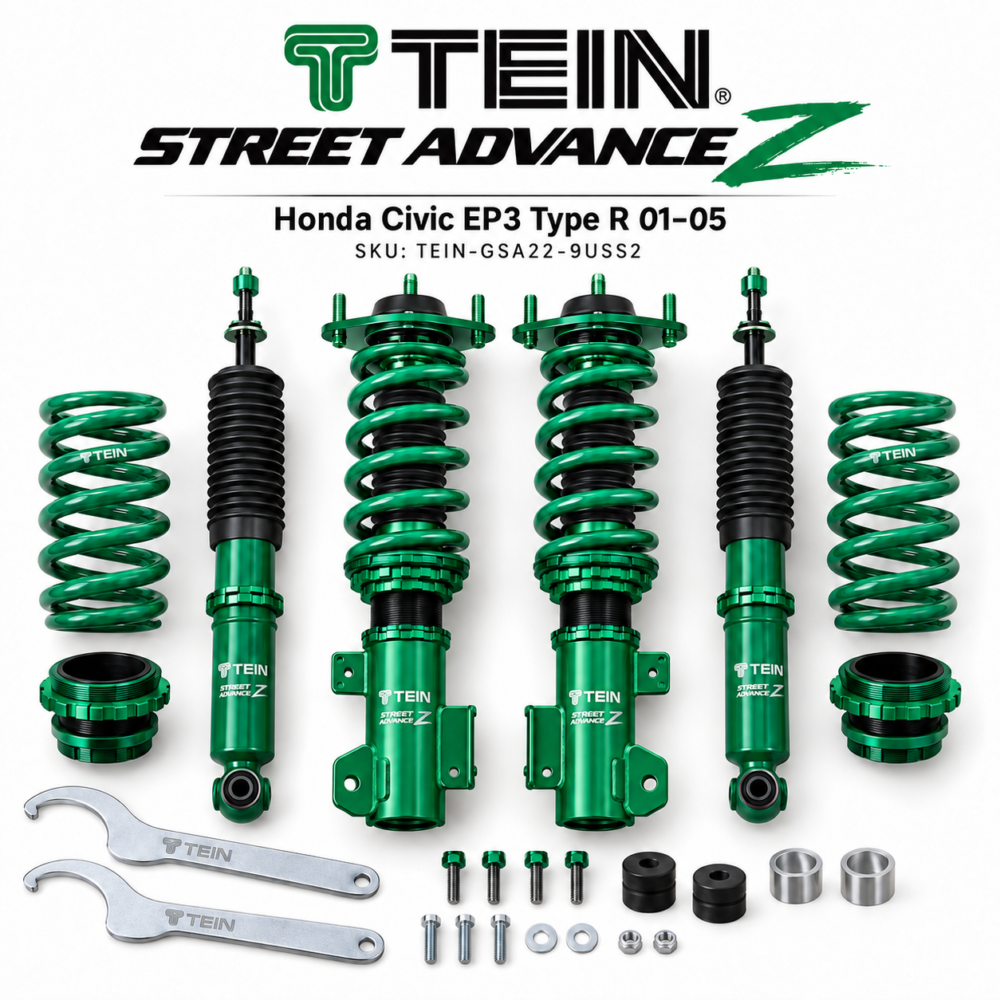

TEIN Street Advance Z Coilovers Honda Civic EP3 Type R 01-05 – GSA22-9USS2
Upgrade your Honda Civic Type R EP3 with the TEIN Street Advance Z Coilovers Honda Civic EP3 suspension kit, part number GSA22-9USS2.
Designed for the 2001–2005 Honda Civic Type R EP3, the Street Advance Z combines adjustable ride height with 16-stage damping force adjustment, allowing you to fine-tune suspension response for everyday road driving, fast-road use and performance applications.
✓ TEIN Street Advance Z coilover suspension
✓ Honda Civic Type R EP3 2001–2005 fitment
✓ 16-stage damping force adjustment
✓ 6.0 kgf/mm front spring rate
✓ 8.0 kgf/mm rear spring rate
✓ Twin-tube damper construction
✓ Ride height adjustment via spring seat
✓ Uses OEM upper mounts
✓ EDFC compatible
✓ TEIN Part Number: GSA22-9USS2
A quality Japanese performance suspension upgrade for EP3 owners wanting improved body control, adjustable damping, reduced ride height and a more purposeful stance.
Available from Manufacturer — estimated dispatch: 2-3 Working Days
Delivery & Return
We aim to dispatch orders as quickly as possible using reliable UK courier services. Delivery times can vary depending on stock availability, supplier location and the type of product ordered.
Estimated delivery times are shown where available, but these should be treated as a guide rather than a guaranteed delivery date.
Some specialist, made-to-order, imported or supplier-direct performance parts may take longer to arrive. If you need a part by a specific date, we recommend checking availability before ordering.
Once your order has been dispatched, tracking information will be provided where available.
UK Delivery
We deliver throughout the United Kingdom.
Shipping charges are calculated at checkout based on the size, weight and destination of your order. Larger or heavier items may have an additional delivery charge.
Deliveries to the Scottish Highlands, Northern Ireland, Isle of Man, Isle of Wight, Channel Islands and other remote locations may take longer or incur additional charges.
International Delivery
International shipping may be available for selected products and destinations.
Import duties, taxes, customs charges and local handling fees are the responsibility of the customer unless stated otherwise. These charges are not included in the product price or standard shipping cost.
Please check your local import requirements before placing an international order.
Incorrect, Damaged or Faulty Items
Please inspect your order as soon as it arrives.
If your item is damaged in transit, faulty or different from what you ordered, contact us as soon as possible with your order number and clear photographs where relevant.
We will review the issue and advise you of the appropriate next steps.
Vehicle Fitment & Compatibility
It is the customer’s responsibility to check that a product is suitable for their vehicle before installation.
Please verify the vehicle model, year, engine, chassis code, part number and any relevant brake, suspension or drivetrain specification before ordering.
If you are unsure about compatibility, contact us before purchase with your vehicle registration or VIN and the product SKU where possible.
We cannot accept responsibility for incorrect fitment caused by inaccurate vehicle information, non-standard modifications or aftermarket conversions that were not disclosed before purchase.
Special Order & Made-to-Order Products
Some performance parts are specially ordered, imported, customised or manufactured specifically for a customer.
These products may be subject to different cancellation and return conditions. Where applicable, this will be confirmed before the order is processed.
Refunds
Approved refunds are normally issued back to the original payment method after the returned item has been received and inspected.
Original delivery charges and return postage may not be refundable unless the item is faulty, damaged or supplied incorrectly.
Please allow time for your bank or payment provider to process the refund after it has been issued.
Need Help?
If you have any questions about delivery, returns or product compatibility, please contact Performance Car Parts UK before ordering. We will be happy to help you check product details and fitment information.
TEIN Street Advance Z Coilovers Honda Civic EP3
The TEIN Street Advance Z Coilovers Honda Civic EP3 kit is a height and damping-adjustable suspension upgrade developed for the Honda Civic Type R EP3 2001–2005.
TEIN part number GSA22-9USS2 combines matched performance springs and twin-tube dampers with 16-stage damping force adjustment, giving Civic EP3 owners considerably more control over suspension setup than the standard factory suspension.
Whether your EP3 is used as a daily-driven road car, fast-road build or occasional track-day vehicle, the Street Advance Z provides a versatile suspension setup designed to balance handling performance with everyday usability.
The kit is particularly suitable for drivers looking to improve steering response, control body movement and lower the vehicle while retaining the ability to adjust damping to suit different road conditions and driving preferences.
Honda Civic Type R EP3 Suspension Upgrade
The Honda Civic Type R EP3 is renowned for its responsive chassis and high-revving 2.0-litre K20A2 engine.
Upgrading the suspension with TEIN EP3 coilovers allows owners to further refine the chassis by replacing the original spring and damper combination with a matched performance suspension package.
Correctly installed and set up, the Street Advance Z system can provide improved suspension control during:
- Cornering
- Braking
- Acceleration
- Direction changes
- Fast-road driving
The adjustable ride height can also reduce the factory wheel-to-arch gap and provide the EP3 with a more purposeful stance.
16-Stage Adjustable Damping
One of the key features of the TEIN Street Advance Z GSA22-9USS2 kit is its 16-stage damping force adjustment.
The damping force can be adjusted to change how quickly the suspension responds to movement.
Softer settings can provide a more compliant setup for normal road driving, while firmer settings can increase suspension control for enthusiastic road driving and performance use.
This gives the driver significantly more flexibility than a conventional fixed-damping suspension setup.
Vehicle-Specific Spring Rates
TEIN specifies vehicle-specific spring rates for the Civic EP3 application.
Front Spring Rate: 6.0 kgf/mm
Rear Spring Rate: 8.0 kgf/mm
The front springs use an approximately 200 mm free length, while the rear springs use an approximately 150 mm free length.
These springs are designed to work together with the Street Advance Z dampers as a complete suspension package.
Twin-Tube Damper Construction
TEIN Street Advance Z coilovers use a twin-tube damper design.
The twin-tube structure is commonly used by TEIN for road-focused suspension because it allows suitable damper stroke while helping provide controlled and progressive suspension movement.
This makes the Street Advance Z particularly suitable for performance road cars that need improved handling without automatically requiring an extremely harsh track-only suspension setup.
Adjustable Ride Height
The Honda Civic EP3 TEIN Street Advance Z coilovers allow vehicle ride height to be altered using the spring-seat adjustment system.
This enables owners to fine-tune the stance and ground clearance of their EP3 within TEIN’s specified adjustment range.
Ride height should always be set with sufficient suspension travel and ground clearance for the vehicle’s intended use.
For UK road cars, additional consideration should be given to speed bumps, uneven roads, driveways and other ground-clearance requirements.
Uses Original Honda Upper Mounts
The GSA22-9USS2 Street Advance Z kit is designed to use the vehicle’s existing OEM upper mounts rather than supplying separate aftermarket top mounts.
When installing the coilovers, inspect the condition of the original upper mounts and related suspension components and replace worn components where required.
EDFC Compatibility
The TEIN Street Advance Z system is compatible with TEIN’s EDFC electronic damping control system where the appropriate EDFC components are installed.
EDFC can provide additional convenience by allowing compatible TEIN damping settings to be controlled electronically rather than manually adjusting each damper.
Designed for Fast-Road and Street Performance
The Street Advance Z range is primarily intended to provide a balance between road usability and performance suspension control.
For a Civic Type R EP3, this makes the kit well suited to drivers looking for:
Improved suspension response, reduced body movement, adjustable damping, adjustable vehicle stance and a matched spring-and-damper suspension package.
Drivers building a road-focused EP3 can use more compliant damping settings, while firmer settings provide additional tuning options for more performance-oriented driving.
Installation and Alignment
Suspension components are safety-critical parts and professional installation is recommended.
After installing the TEIN Street Advance Z Coilovers Honda Civic EP3, the vehicle should receive a professional four-wheel alignment.
Changing ride height can alter suspension geometry including toe and camber.
Correct alignment is important for predictable handling, steering response and tyre wear.
TEIN also specifies an important installation detail for this application: the front left-hand assembly uses left-hand threads, meaning the spring seat and lock must be tightened in the correct direction according to TEIN’s fitting instructions.
Always follow the supplied TEIN installation manual.
TEIN GSA22-9USS2 for Civic Type R EP3
If you’re searching for Honda Civic Type R EP3 coilovers with adjustable damping and ride height, the TEIN Street Advance Z provides a proven suspension solution from one of Japan’s best-known suspension manufacturers.
Part number GSA22-9USS2 is specifically listed for the UK-market Honda Civic Type R EP3 application.
It combines:
16-stage damping adjustment, vehicle-specific spring rates, twin-tube dampers, height adjustment and OEM upper-mount compatibility in one complete suspension package.
Coilovers or Lowering Springs?
If you’re deciding between this TEIN coilover kit and conventional lowering springs, read our Coilovers vs Lowering Springs UK Guide
Lowering springs provide a simpler fixed-height solution, whereas adjustable coilovers such as the Street Advance Z provide considerably greater control over suspension setup.
You can also browse our performance car parts and suspension upgrades for other chassis, handling and performance components.
FREQUENTLY ASKED QUESTIONS
Do TEIN Street Advance Z coilovers fit the Honda Civic Type R EP3?
Yes. TEIN lists part number GSA22-9USS2 for the UK Honda Civic Type R EP3 produced from 2001 to 2005.
What is the part number for these Civic EP3 TEIN coilovers?
The TEIN manufacturer part number is GSA22-9USS2.
Your Performance Car Parts UK SKU can remain TEIN-GSA22-9USS2.
Are TEIN Street Advance Z EP3 coilovers damping adjustable?
Yes. The Street Advance Z system provides 16-stage damping force adjustment, allowing the suspension response to be fine-tuned.
What are the spring rates?
For the Civic Type R EP3 application, TEIN specifies:
Front: 6.0 kgf/mm
Rear: 8.0 kgf/mm
Do these coilovers include adjustable top mounts?
No. This Civic EP3 Street Advance Z application is designed to use the vehicle’s original OEM upper mounts.
Are TEIN Street Advance Z coilovers height adjustable?
Yes. Ride height is adjusted through the spring-seat adjustment system. Street Advance Z should not be described as a full-length independent-height-adjustable coilover for this application.
Are these suitable for road use?
Street Advance Z is designed as a street-performance suspension system, offering damping and ride-height adjustment suitable for owners who want greater suspension control while retaining road usability.
Do I need a wheel alignment after fitting coilovers?
Yes. A professional wheel alignment is recommended after fitting the coilovers or making significant ride-height changes.
Are these compatible with TEIN EDFC?
Yes, this application is listed as compatible with TEIN EDFC systems when used with the appropriate EDFC components.
Technical Specification
| Brand | TEIN |
| Product Range | Street Advance Z |
| Manufacturer Part Number | GSA22-9USS2 |
| Product SKU | TEIN-GSA22-9USS2 |
| Suspension Type | Coilover Suspension Kit |
| Damper Construction | Twin-Tube |
| Damping Adjustment | 16-Stage |
| Front Damping Adjustable | Yes |
| Rear Damping Adjustable | Yes |
| Ride Height Adjustment | Spring Seat Adjustment |
| Full-Length Height Adjustment | No |
| Front Spring Rate | 6.0 kgf/mm (Approx. 336 lb/in) |
| Rear Spring Rate | 8.0 kgf/mm (Approx. 448 lb/in) |
| Front Spring Length | 200 mm |
| Rear Spring Length | 150 mm |
| Spring Inner Diameter | 70 mm |
| Upper Mounts | OEM Upper Mounts Retained |
| EDFC Compatibility | Compatible |
| Vehicle Drivetrain | Front-Wheel Drive |
| Important Installation Note | Front left assembly uses left-hand threads. Follow TEIN installation instructions for tightening direction. |
Vehicle Fitment
| Year | Make | Model | Submodel / Trim | Engine Size + Chassis Code | SKU |
|---|---|---|---|---|---|
| 2001 | Honda | Civic | Type R | 2.0L EP3 | TEIN-GSA22-9USS2 |
| 2002 | Honda | Civic | Type R | 2.0L EP3 | TEIN-GSA22-9USS2 |
| 2003 | Honda | Civic | Type R | 2.0L EP3 | TEIN-GSA22-9USS2 |
| 2004 | Honda | Civic | Type R | 2.0L EP3 | TEIN-GSA22-9USS2 |
| 2005 | Honda | Civic | Type R | 2.0L EP3 | TEIN-GSA22-9USS2 |
